JLG 2646ES Electric Scissor Lift 26ft. Manlift Aerial Work Platform

Description:

REFURBISHED JLG 2646ES Electric Scissor Lift

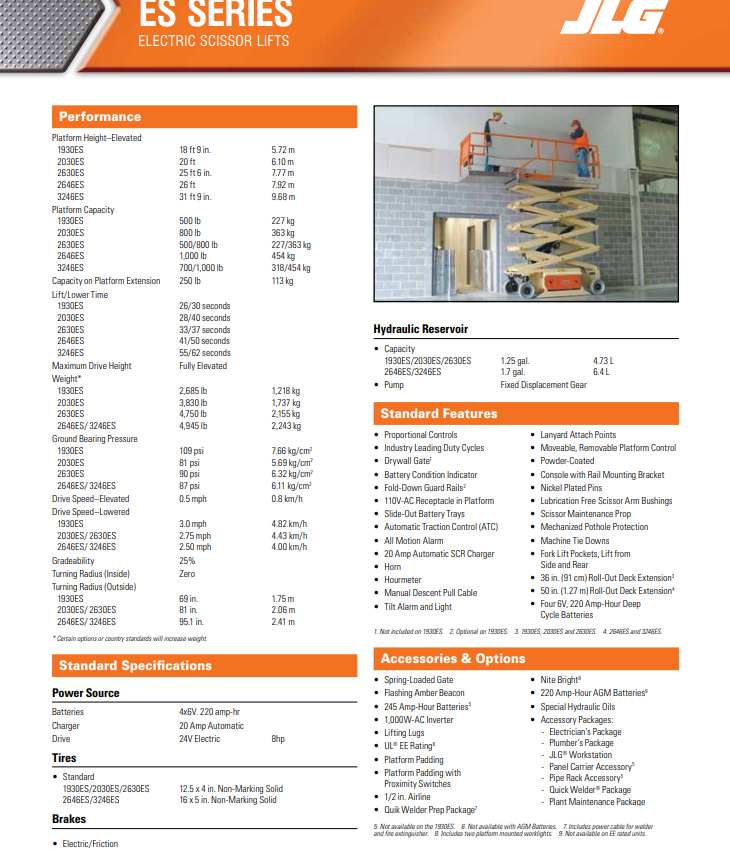

Specs:

• Year: 2006
• Capacity: 1,000 lbs.
• Power Type: Electric (24v) ; NEW BATTERIES
• Charger: Onboard
• Tires: Solid

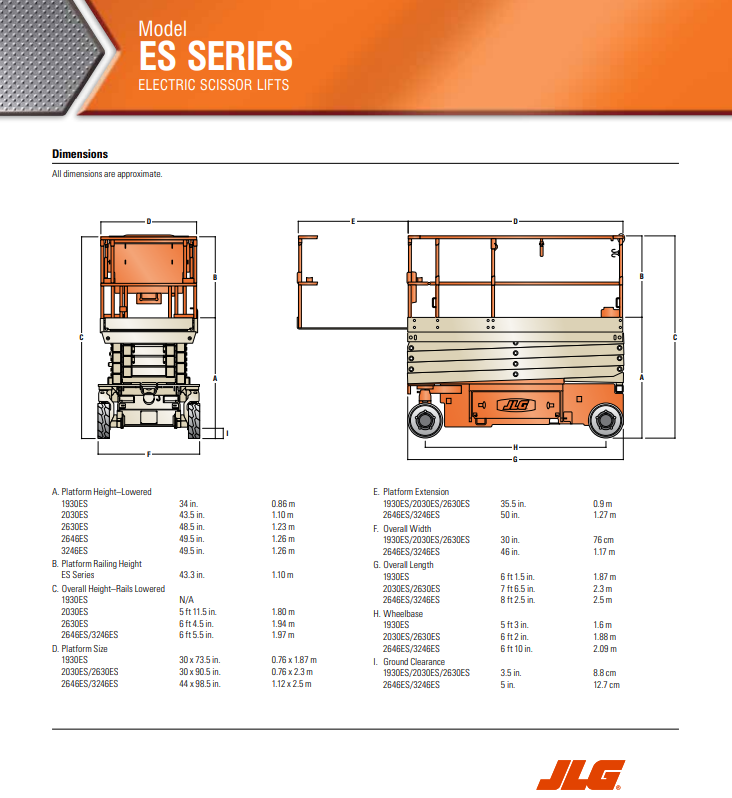

• Working Height 9.92 m
• Platform Height – Elevated 26ft
• Platform Height - Lowered 49.5 in
•  B. Platform Railing Height 43.3 in.
•  C. Stowed Height (Rails Folded) 6ft 5.5in
•  D. Platform Size (W x L) 44 in x 98.5 in
•  E. Deck Extension 50in.
•  F. Overall Width 46 in
• G. Overall Length 8ft 2.5in
•  H. Wheelbase 6ft 10in.
•  I. Ground Clearance 5in.
•  Platform Capacity 1,000 lbs.
• Capacity on Optional Deck Extension 250 lbs.
• Lift/Lower Time 41/50 sec.
• Maximum Drive Height - Fully Elevated
• Machine weight - 4945 lbs.
• Maximum Ground Bearing Pressure 87 psi
• • Drive Speed - Lowered - 2.5mph
• • Drive Speed - Elevated - 0.5mph
• • Gradeability 25%
• • Turning Radius – Inside Zero
• • Turning Radius – Outside 9.51 in

Warranty: 90-Day (Parts & Labor)

List of Preventative Service:

Preventative Maintenance (Fluids/Filters/Grease Chassis), 120-Point Inspection, NEW Batteries, New Motor Brushes, Rebuilt Lift Cylinder & Steer Cylinder, Inspect All Safety Equipment (Lights, Seat Belts, Horn, Back-Up Alarm), Inspect/Adjust Brakes, Inspect/Repair Any Oil Leaks, Inspect All Linkages & Adjust if Necessary.

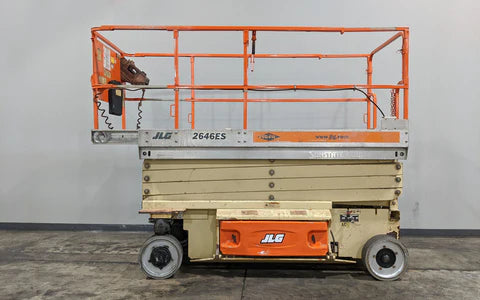

Please note: Picture is a stock photo as a placeholder for what you will actually receive.
